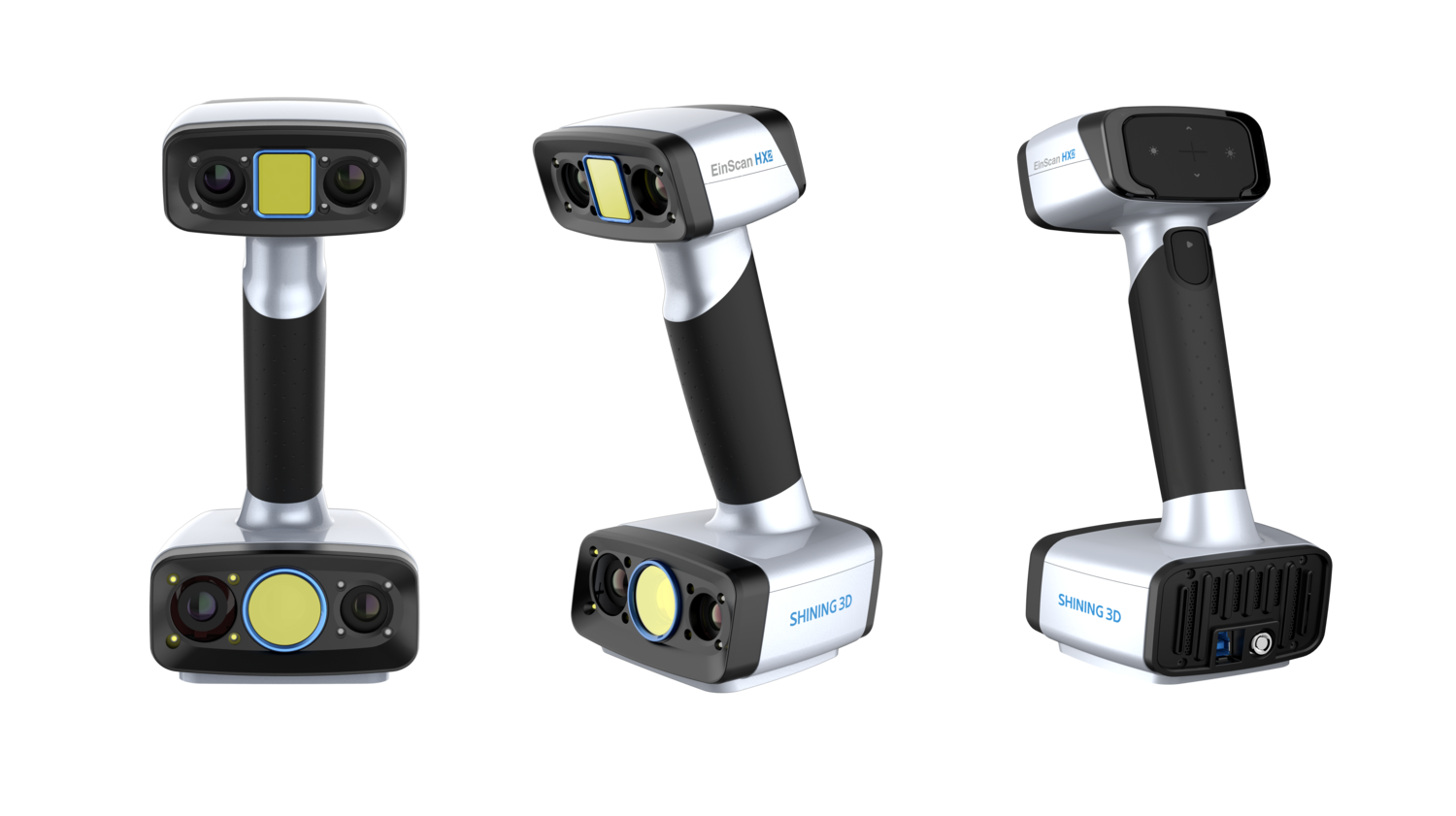

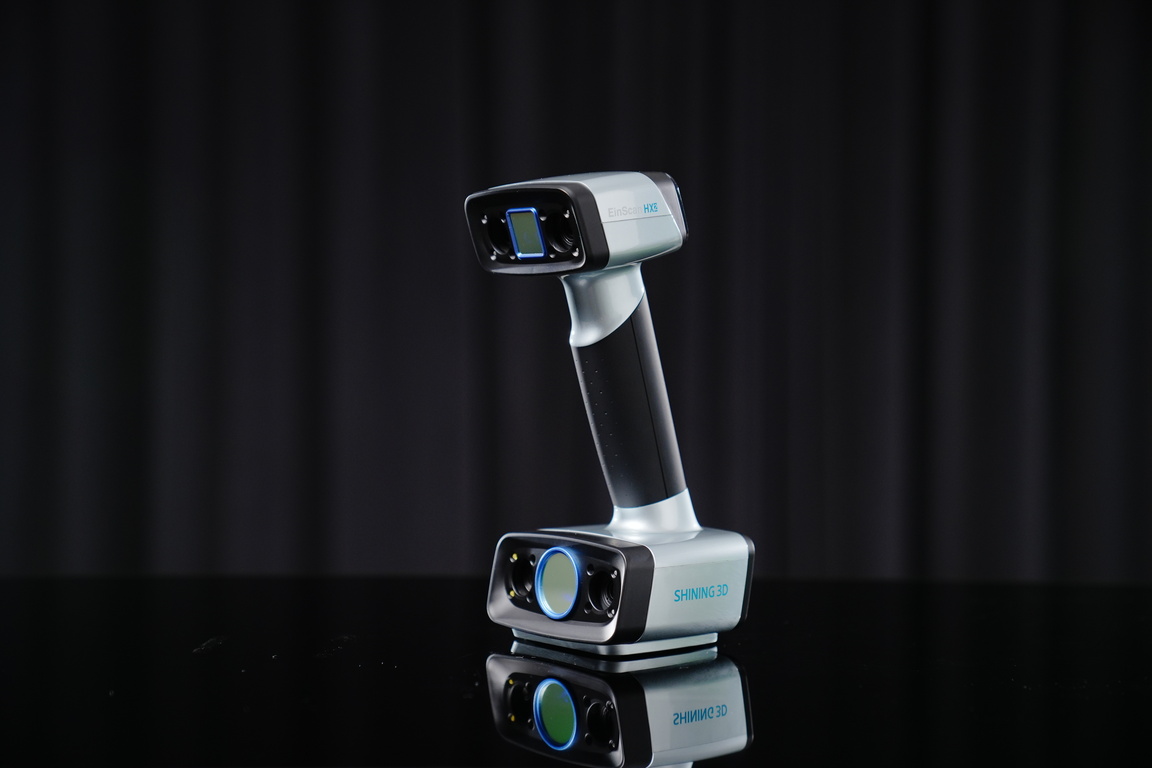

EinScan HX2
249.000.000 ₫ - Stock arriving soon
Retaining the hybrid laser and blued LED technology, the EinScan HX2 excels in accuracy, versatility, and ease of use.
- Accuracy up to 0.04 mm
- Minimum point distance of 0.05 mm
- 1,600,000 points/s and 120 FPS under laser scan mode
- Full Color
The EinScan HX2 enhances its predecessor’s features, now boosting 13 crossed blue laser lines for more detailed scanning and an increased frame rate of 120 FPS for faster scanning.
- Hybrid Blue Laser & LED Light
- High Efficiency
- High Accuracy & Detail
- Portable & Easy Operation
- Full Color
- Reverse Engineering Bundle
The EinScan HX2 continues the innovative integration of hybrid blue laser and LED light technology, enhancing material adaptability for a broader range of applications. The advanced blue laser captures complete data from black and reflective surfaces with exceptional surface and environmental adaptability, now with 13 laser lines for more fast and detailed scans. The efficient LED light scanning requires no markers, enabling rapid 3D scanning without preparation.
The EinScan HX2’s laser scan mode reaches 1,600,000 points/s and 120 FPS, enabling rapid scans for reverse engineering, CAD/CAM, and 3D printing. It scans most objects in minutes, ensuring superior efficiency and productivity in all your 3D scanning projects.
The EinScan HX2 meets the rigorous demands of industrial applications for reverse engineering and precise measurement.
- Minimum point distance of 0.05 mm
- Accuracy up to 0.04 mm under laser mode

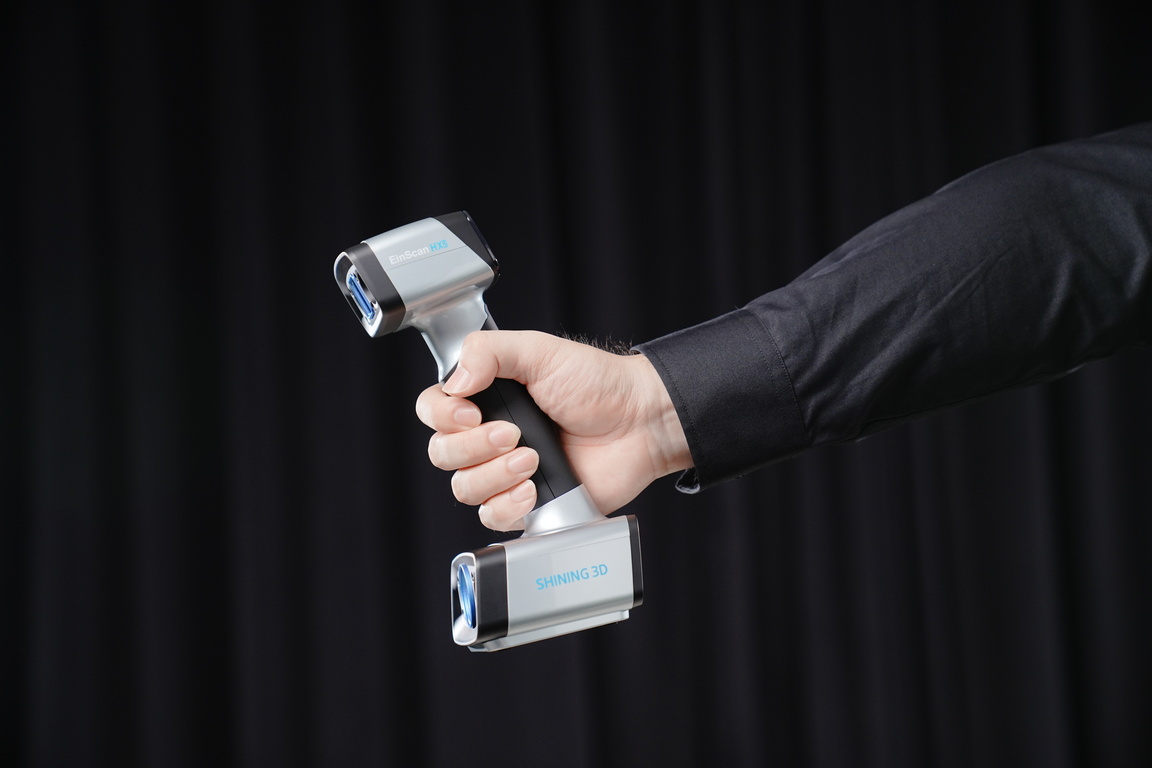

The EinScan HX2 excels in portability and ease of use with its ergonomic design and lightweight build at just 745g. Perfect for both beginners and professionals, its plug-and-play functionality and user-friendly software make 3D scanning efficient and comfortable, anywhere you go.
With a built-in color camera, it supports full-color texture capturing and tracking in rapid scan mode.
Texture Mapper Lite further simplifies photorealistic texture mapping.
| Parameter name | Value |
|---|---|
|
Scan Mode
|
Rapid Scan | Laser Scan |
|
Light Source
|
Blue LED | Blue Laser |
|
Scan Accuracy
|
0.04 mm |
|
Volumetric Accuracy
|
0.04 ± 0.06 mm/m |
|
Scan Speed
|
1,600,000 points/s |
|
Resolution
|
0.05 ~ 3 mm |
|
Maximum FOV
|
420 x 440 mm |
|
Depth of field
|
200 ~ 700 mm |
|
Texture Scan
|
Yes (Built-in Color Camera) |
|
Photogrammetry
|
No |
|
Integrated CPU
|
N/A |
|
Wireless scanning
|
No |
|
Output Formats
|
OBJ, STL, ASC, PLY, P3, 3MF |
|
Accuracy Certifications
|
VDI/VDE 2634 – 2 |
|
Certifications
|
CE, FCC, ROHS, WEEE, KC |
