SKU HH.MS.SN.37
Einstar Vega
47.000.000 ₫ - Stock arriving soon
Wireless All-In-One 3D Scanner
- Two Scanners in One: VCSEL+ MEMES
- Wireless Scanning & Screen Casting & Cloud Sharing
- 0.05mm High Resolution & 48MP High Quality Texture
- 32GB Built-in Computing & 512GB SSD Internal Data Archiving
Unleash Your 3D Vision
- All-in-One System
- Two 3D Scanners in One
- Smooth Scanning at Any Time
- Wireless Solution
- Powerful Hardware
- Coverage from Small to Large Objects

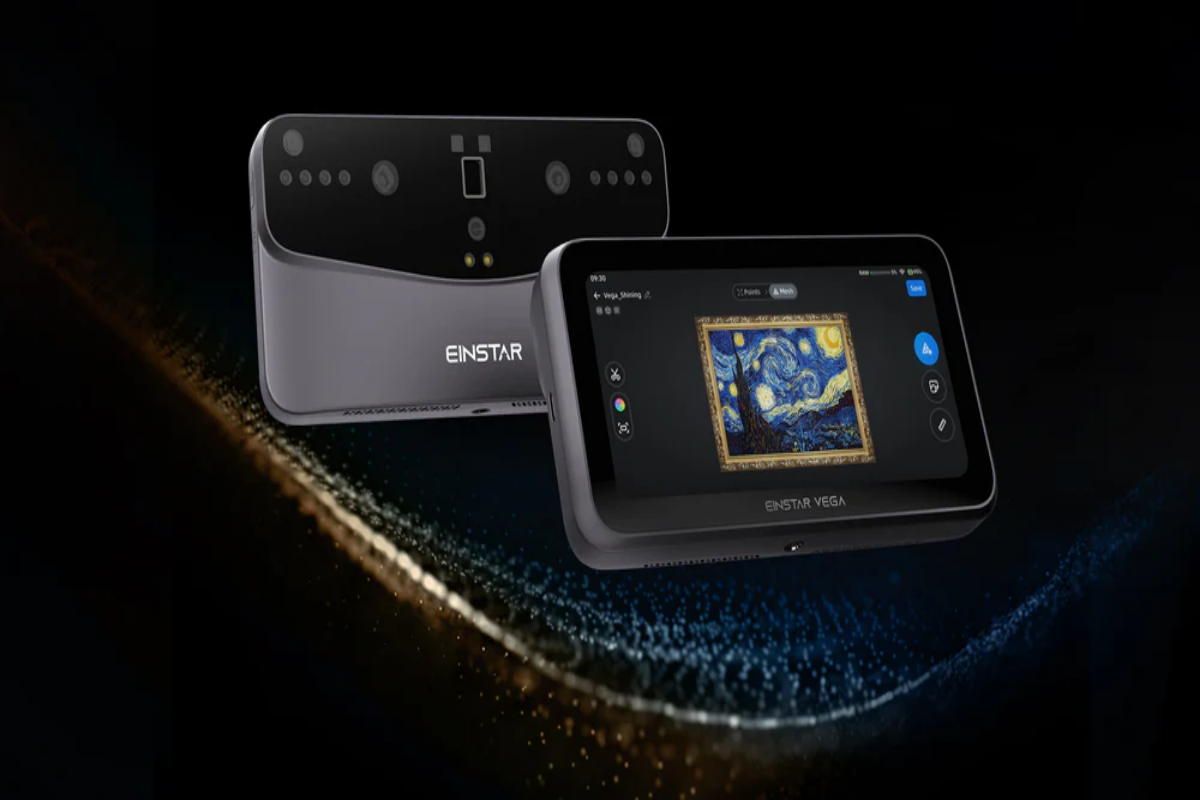

All-in-One System
You can take the VEGA with you wherever you go. Scan, save, and share the data at any time, unleashing endless possibilities with 3D vision.
- Two scanning technologies in one
- Built-in computing
- Internal data archiving
Two 3D Scanners in One
- VCSEL for long range scanning: smooth scanning under unlimited environment
- MEMS for short range scanning: stable scanning for high-detail data

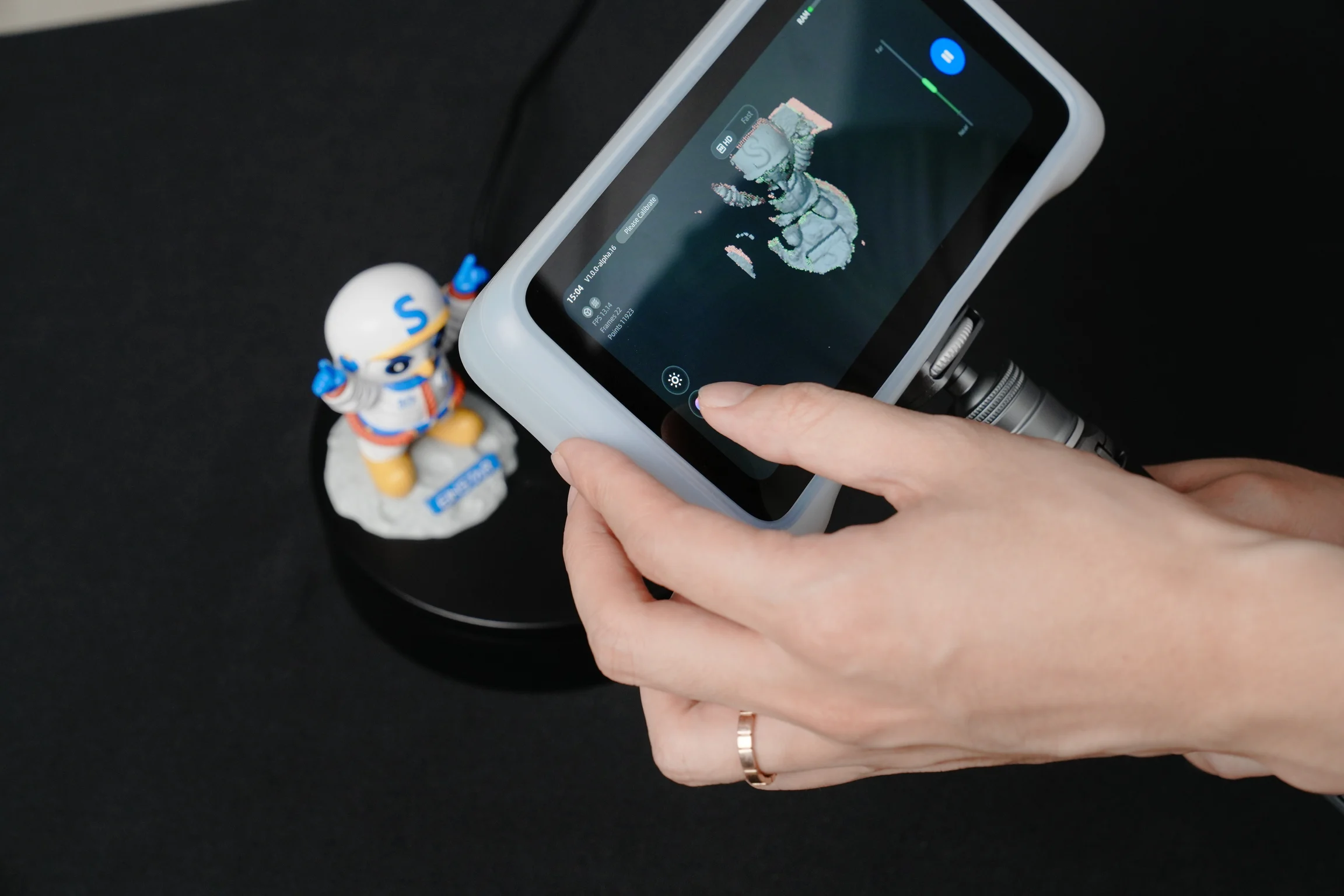

Pick Up and Scan
- Ergonomic design
- One-click start
- One-click processing
Wireless Solution
- Wireless scanning: Without connecting to PC
- Wireless transfer: Data sharing to SHINING 3D Cloud
- Wireless screen casting: Display on a second screen
Pioneering Software Features
- 12mm markers alignment in fast mode: Minimize markers numbers when scanning super large objects
- Hybrid alignment: Enhance tracking stability and efficiency
- Scanning rewind: Support to correct data alignment error during scanning process
- Auto detecting the base plane
- Coordinate system adjustment
- Model measurement
Fast Mode
- For medium to large size objects
- Working distance 350～1500 mm for medium to large objects
- Scanning speed up to 20 fps
HD Mode
- For small to medium size objects
- Working distance 100～250 mm for small objects
- Scanning speed up to 15 fps
Powerful Hardware
- 6.4 Inch 2K AMOLED
- 32 RAM
- 32GB eMMC + 512GB SSD
- 48MP RGB texture camera
- Lightweight 535g
- Continuous operation during charging
PC Software Starvision
Compatible with Windows and Mac OS.
SHINING 3D Cloud
- Data sharing and collaboration
- Data storage and management
- Data measurement
- Free 5GB space to each SHINING 3D user
View more
| Parameter name | Value |
|---|---|
|
Scan Mode
|
Rapid Scan | HD Scan | Fixed Scan |
|
Light Source
|
White LED |
|
Scan Accuracy
|
0.04 mm |
|
Volumetric Accuracy
|
0.3 mm/m |
|
Scan Speed
|
3,000,000 points/s |
|
Resolution
|
0.2 ~ 2 mm |
|
Maximum FOV
|
250 x 200 mm |
|
Depth of field
|
400 mm |
|
Texture Scan
|
Yes (Color Pack) |
|
Photogrammetry
|
No |
|
Integrated CPU
|
Industrial Pack, Color Pack |
|
Wireless scanning
|
No |
|
Output Formats
|
OBJ, STL, ASC, PLY, P3, 3MF |
|
Accuracy Certifications
|
VDI/VDE 2634 – 2 |
|
Certifications
|
CE, FCC, ROHS, WEEE, KC |
