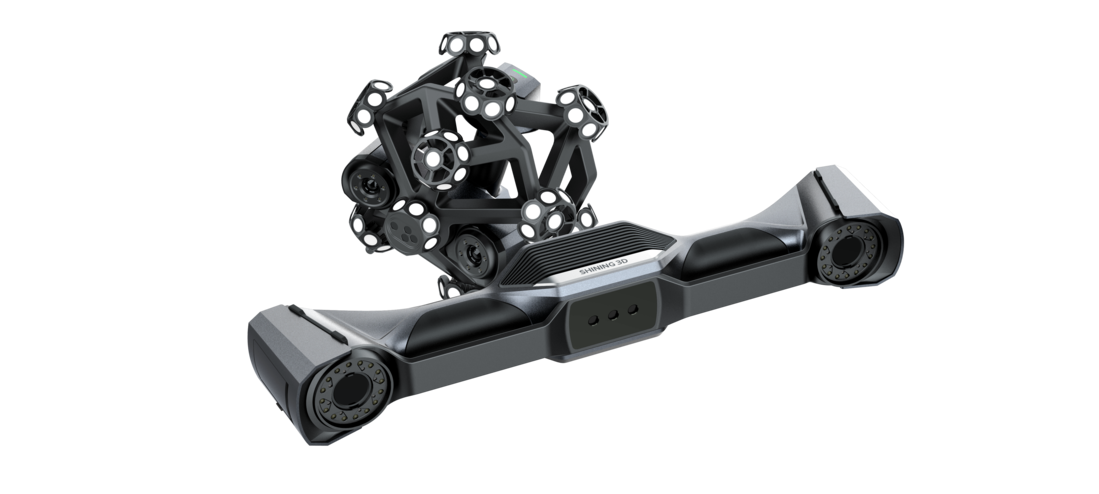

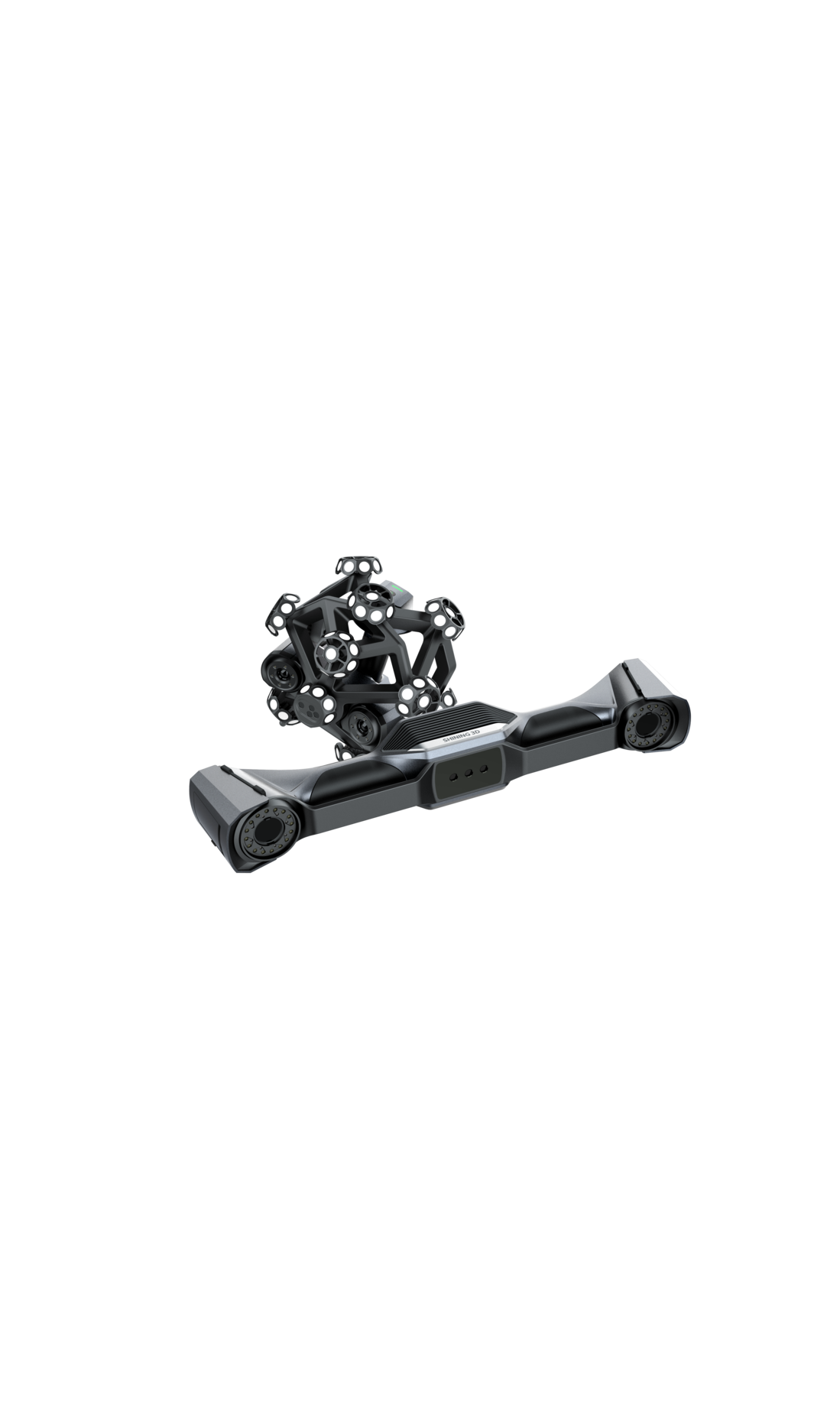

Freescan Trak Nova
ContactFreeScan Trak Nova captures intricate details with high accuracy, making it perfect for scanning delicate artifacts. The scanner's compact and lightweight
Wireless Multi-Functional Dynamic Tracking & Scanning System
- Flexible & Separable System
- Compact & Agile Dynamic Tracking
- Wireless & Lightweight Design
- Integrated Video Photogrammetry (VPG)
From construction machinery to rail transit, civil aviation to energy, FreeScan Trak Nova is built to meet the diverse needs of industries requiring accurate and efficient large-scale measurements with extreme portability, productivity and versatility.
- All-In-One Scanning System
- Detachable Handheld Scanner
- Dynamic Tracking
- Integrated Video Photogrammetry
- Completely Wireless
- Effortlessly Portable
The real-time tracking technology allows for the capture of fine details. With its wireless and compact design, the system excels in scanning confined spaces, ensuring efficient and precise measurements.

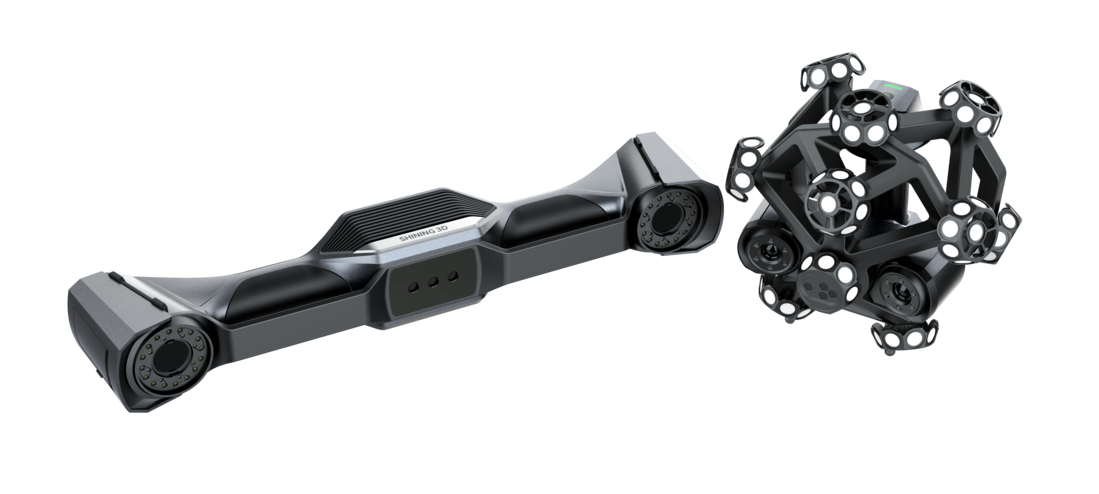

FreeScan Trak Nova includes a detachable handheld scanner. The tracker, FreeScan UE Nova, also serves as a handheld laser scanner with the largest FOV on the market, delivering unparalleled efficiency and flexibility.
- Large-scale scanning coverage with 2.6 × 2.2 m FOV
- Ultra fast scan speed
- Certified and guaranteed accuracy
FreeScan Trak Nova system features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers. By integrating photogrammetry technology with a calibration rod, it enables real-time marker verification through video capture. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.
Integrated wireless modules: Achieve greater freedom when scanning large objects or in tight spaces, without the limitations of cables or external devices. This seamless integration allows for real-time transmission of scan data, ensuring high frame rates and stable data transfer.
Built-in computing modules: With advanced computing modules, both the tracking scanner and wide-range scanner ensure rapid and efficient processing.
Everything you need is neatly packed in one portable case, with a lightweight carbon fiber structure that ensures stability and reliable performance in any environment.
- TE Nova: 1.2 kg
- UE Nova: 1.6 kg
For maximum convenience, FreeScan Trak Nova features detachable batteries for extended scanning time. Easily swap out batteries to keep your workflow uninterrupted, even during long projects or in remote locations.
| Parameter name | Value |
|---|---|
|
Scan Mode
|
“High-Speed (50 Laser) | Detail (7 Laser) | Pocket (1 Laser) |
|
Light Source
|
Blue Laser |
|
Scan Accuracy
|
0.046 mm |
|
Volumetric Accuracy
|
0.062 mm (12 m³) |
|
Scan Speed
|
N/A |
|
Resolution
|
N/A |
|
Maximum FOV
|
2600 x 2200 mm |
|
Depth of field
|
2600 mm |
|
Texture Scan
|
No |
|
Photogrammetry
|
Built-in Video Photogrammetry (VPG) |
|
Integrated CPU
|
Supports the wireless TE Nova scanning head for marker-free scanning |
|
Wireless scanning
|
Supports wireless connection and data transmission for the entire TE Nova + UE Nova |
|
Output Formats
|
OBJ, STL, ASC, PLY, P3, 3MF |
|
Accuracy Certifications
|
VDI/VDE 2634 – 3 (ISO 17025 Certified Lab) |
|
Certifications
|
CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX, TELEC” |
