FreeScan Trak Pro W

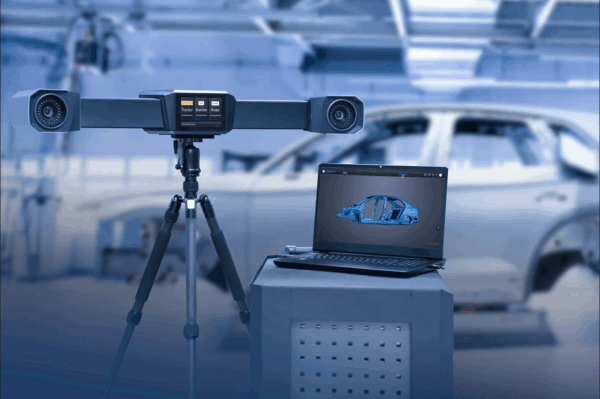

ContactFreeScan Trak ProW is an industrial-grade handheld 3D laser scanner that delivers fast scanning speed, a wide scanning range, and exceptional accuracy. It is ideal for capturing 3D models of large mechanical parts and heavy industrial components without the need for reference markers.
Wireless 3D Dynamic Tracking & Scanning System with Expanded Range
- Marker-Free & Wireless Scanning
- Max. 8.6 m Tracking Distance & 206.7 m³ Tracking Volume
- Integrated Video Photogrammetry (VPG)
- Compatible with FreeProbe (Optional)
FreeScan Trak ProW features a groundbreaking design with an ultra-long 8.6 m tracking distance and widely expands the single-station tracking volume to 206.7 m³, significantly reducing the need for leapfrog* during large-scale object scanning.
FreeScan Trak ProW delivers fast, wireless scanning anywhere. Its cable-free design enables real-time data transfer, with power bank support for unrestricted mobility. An integrated screen ensures seamless operation.
- Built-In Computing Modules
- Integrated Wireless Modules
- Flexible Power Supply
- Real-Time Display Screen
FreeTrak W enables real-time TE25W scanner recognition and positioning, eliminating the need for reference markers, which enhances scanning efficiency and streamlines the workflow, while ensuring rapid data acquisition with a scanning speed of up to 5,500,000 points per second.
FreeScan Trak ProW features SHINING 3D’s patented video-based photogrammetry, which eliminates the need for coded markers. By integrating photogrammetry technology with a calibration rod, it enables real-time marker verification through video capture. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.
| Parameter name | Value |
|---|---|
|
Scan Mode
|
“50 Laser Lines | 7 Parallel Laser Lines | Single Laser |
|
Light Source
|
TE25W: Blue Laser |
|
Scan Accuracy
|
0.023 mm |
|
Volumetric Accuracy
|
15.6 m³: 0.046 mm |
|
Scan Speed
|
5,500,000 points/s |
|
Resolution
|
0.01 ~ 10 mm |
|
Maximum FOV
|
/ |
|
Depth of field
|
/ |
|
Texture Scan
|
No |
|
Photogrammetry
|
Built-in Video Photogrammetry (VPG) |
|
Integrated CPU
|
FreeScan Probe (option) |
|
Wireless scanning
|
No |
|
Output Formats
|
OBJ, STL, ASC, 3MF |
|
Accuracy Certifications
|
VDl/VDE 2634 Part3 (certificated in ISO 17025 certificated accuracy lab) |
|
Certifications
|
CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX” |
