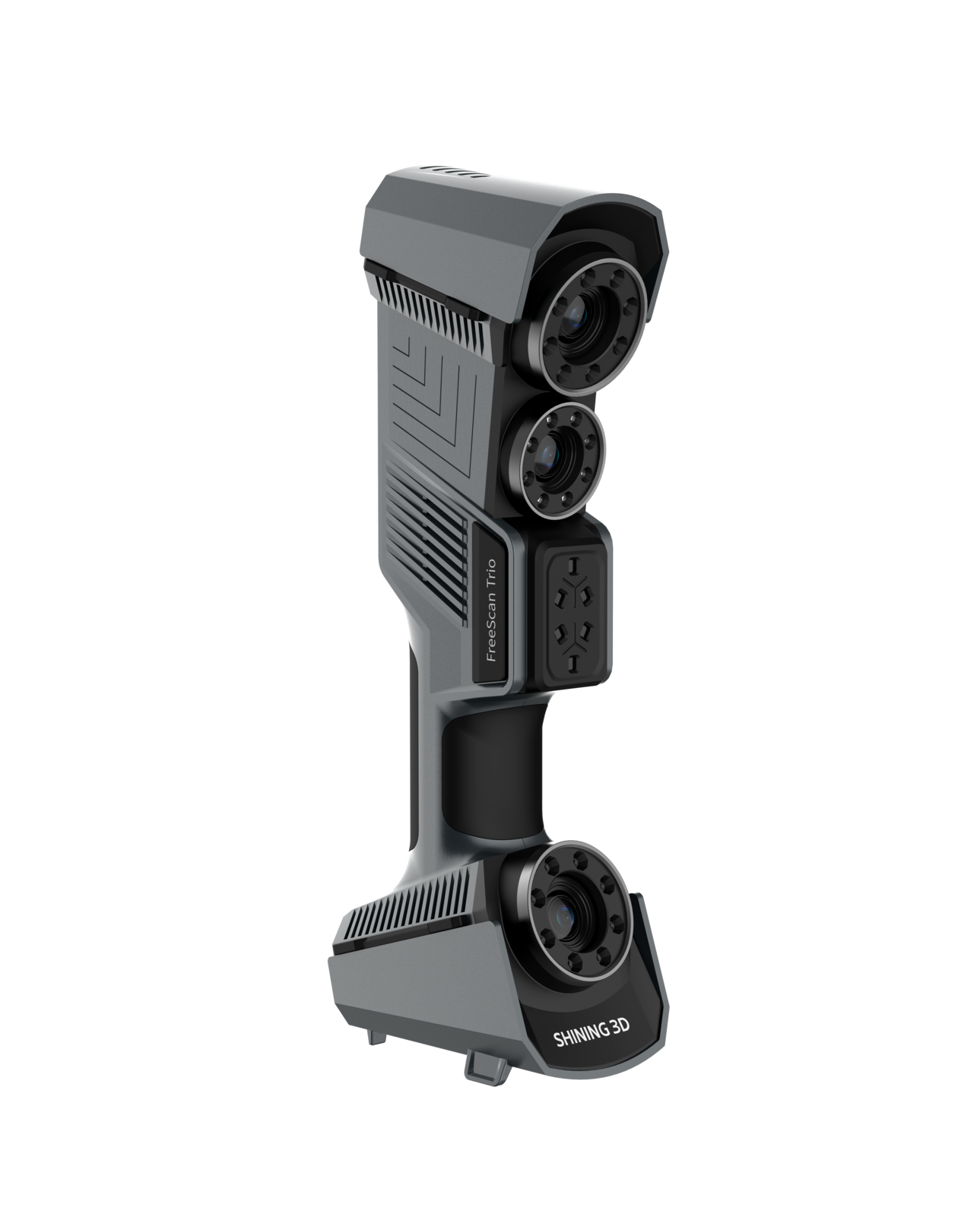

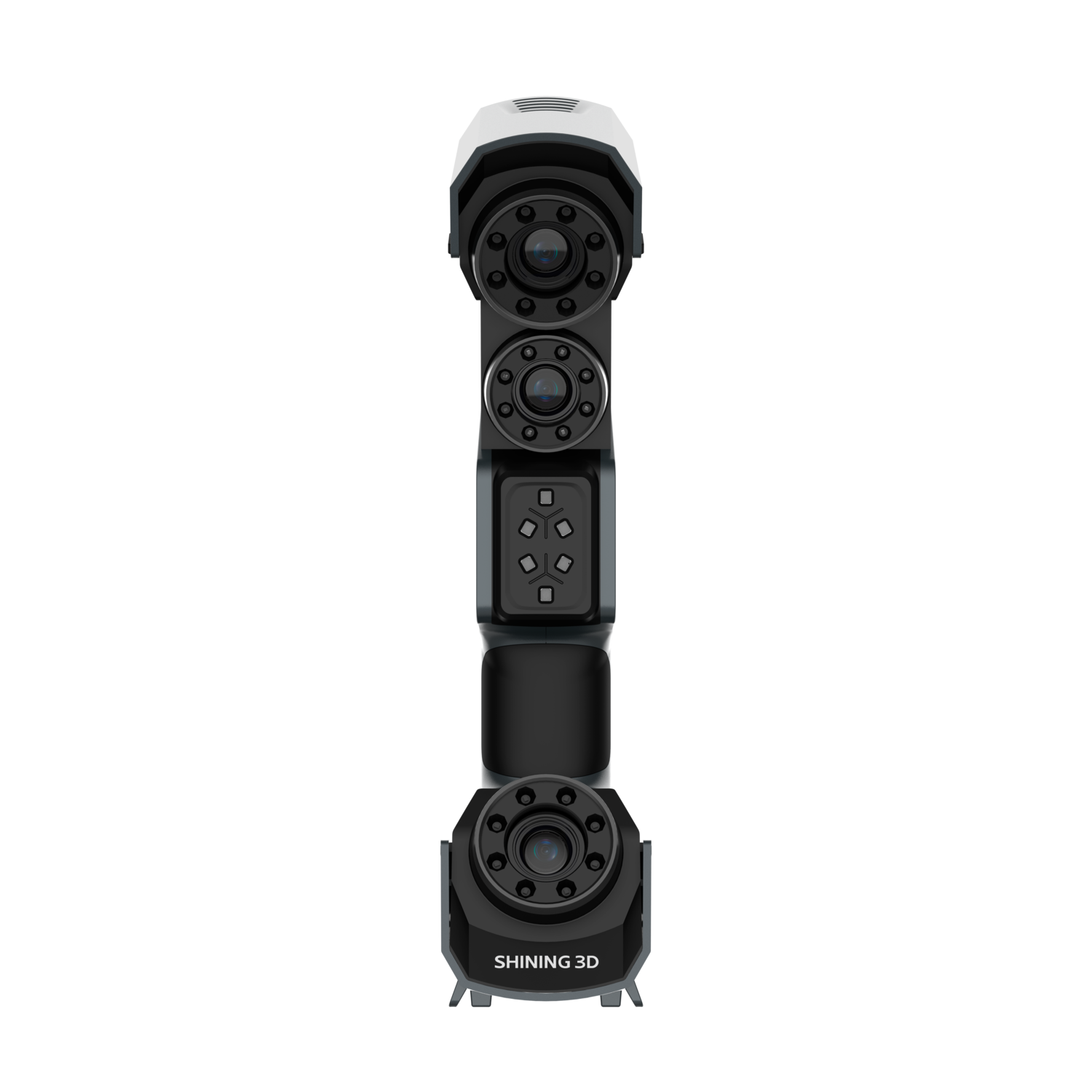

Freescan Trio
ContactWorld's First Marker-Free Handheld Laser 3D Scanner
- Accuracy of 0.02 mm with markers
- Speed up to 3,010,000 points/s
- Three 5 megapixel cameras
- 4 scanning modes and built-in photogrammetry
FreeScan Trio is the industry’s first marker-free handheld 3D scanner that owns the unique innovative techologies to address a wide range of inspection tasks.
- Speed and Efficiency Redefined: The FreeScan Trio redefines speed and efficiency with its 98 laser lines that enable marker-free scanning. It can deliver up to 3,010,000 points per second. Less preparation, more efficiency.
- The Power of Three 5MP Cameras: With three industrial cameras, each wielding 5MP, the FreeScan Trio brings out the most elaborate details and high-quality 3D data.
- Certified and Guaranteed Results: Under the scan modes with markers, the FreeScan Trio consistently provides high-precision scanning results with an accuracy of 0.02 mm.
- Quick On-Site Inspection: Simplify operations and enhance fast quality check for various on-site inspection tasks.
- No Markers Scan Mode: FreeScan Trio introduces advanced intelligent self-positioning technology to streamline the scanning process. With 98 laser lines, it eliminates the need for markers, and achieves a fast scan speed of up to 3,010,000 points per second.
- 3 Industrial 5MP Cameras: With three industrial cameras, each wielding 5MP, FreeScan Trio brings out the most elaborate details and high-quality 3D data.
FreeScan Trio delivers exceptional high-details capture, ensuring intricate data acquisition with or without markers.
Both 26 and single laser lines of FreeScan Trio are capable of scanning holes, deep pockets and fin walls, thanks to its optimized camera angles and advanced scanning modes.
FreeScan Trio features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.
At SHINING 3D, we don’t just provide devices – we deliver customized solutions, global support, and a commitment to your success. From intuitive tools to calibrated accuracy, we’re here to empower your work.
| Parameter name | Value |
|---|---|
|
Scan Mode
|
26 Laser Lines | 7 Parallel Laser Lines | Single Laser | 98 Laser Lines |
|
Light Source
|
Blue Laser |
|
Scan Accuracy
|
0.02 mm |
|
Volumetric Accuracy
|
0.02 ± 0.015 mm/m (photogrammetry) |
|
Scan Speed
|
3,010,000 points/s |
|
Resolution
|
0.01 ~ 3 mm |
|
Maximum FOV
|
650 x 580 mm |
|
Depth of field
|
300 mm |
|
Texture Scan
|
No |
|
Photogrammetry
|
Built-in Photogrammetry |
|
Integrated CPU
|
/ |
|
Wireless scanning
|
No |
|
Output Formats
|
OBJ, STL, ASC, PLY, P3, 3MF |
|
Accuracy Certifications
|
VDI/VDE 2634 – 3 (ISO 17025 Certified Lab) |
|
Certifications
|
CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX |
