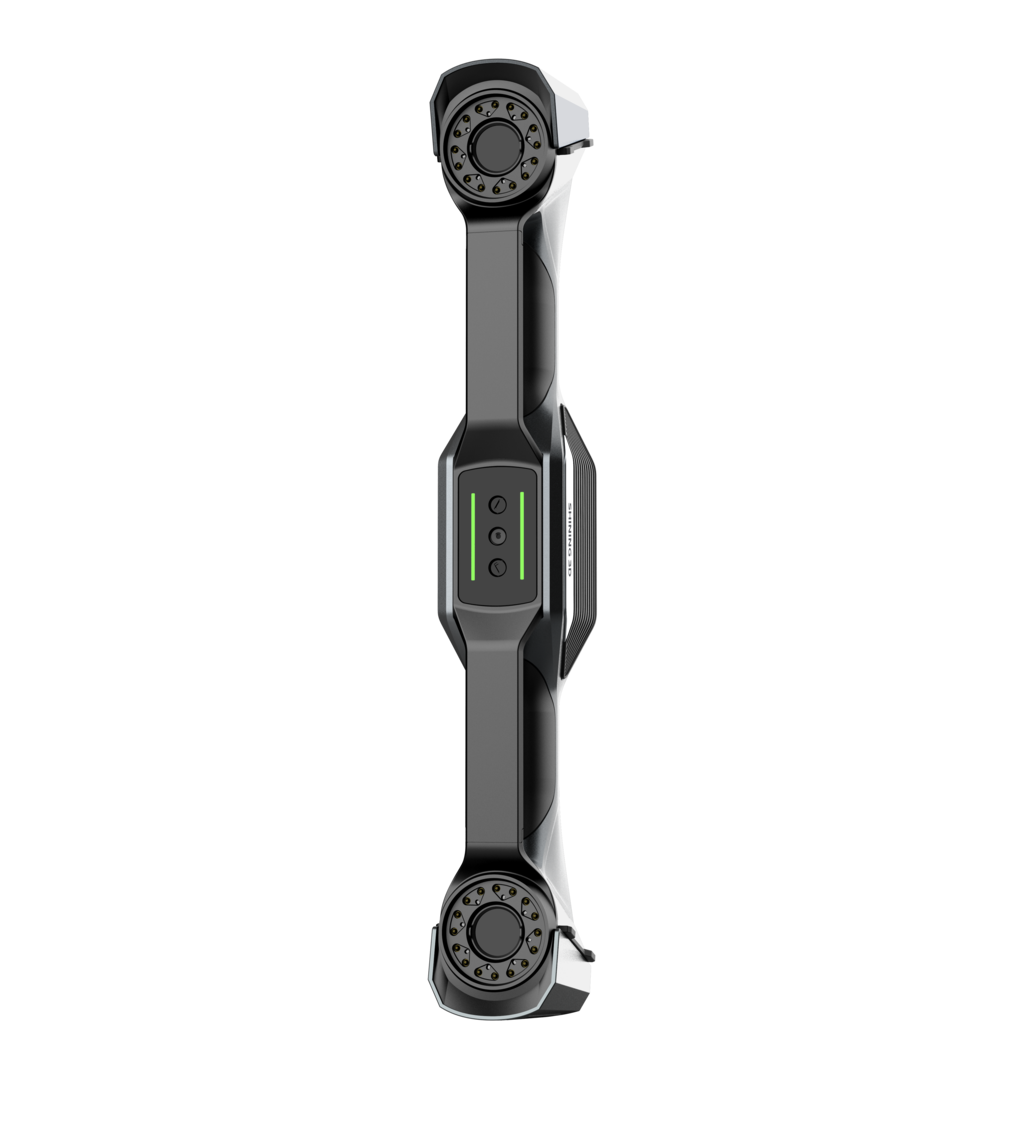

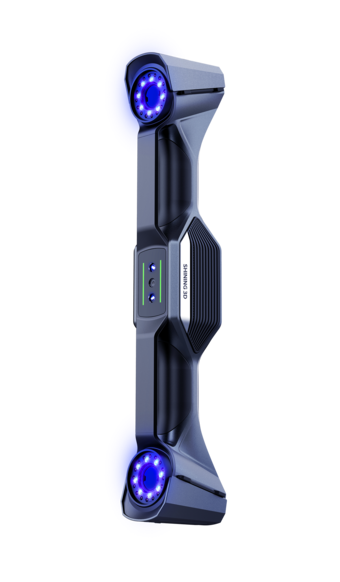

FreeScan UE Nova
Contact
Wireless Metrology 3D scanner for greater reach
- Extra-Large FOV of 2.6 × 2.2 m
- Ultra-Fast Scan Speed
- Integrated Video Photogrammetry (VPG)
- Complete Wireless
FreeScan UE Nova sets a new standard in 3D scanning with its unmatched field of view, enabling highly efficient capture of large objects and significantly enhancing portability, productivity, and versatility.
- Large-Scale Scanning Coverage
- Ultra-Fast Scan Speed
- Integrated Video Photogrammetry (VPG)
- Flexible FOV
FreeScan UE Nova offers expansive coverage, delivering unparalleled efficiency and flexibility.
- Large-scale scanning coverage: FOV of 2.6 × 2.2 m
- Maximum scanning distance of 2.6 m
- 50 Laser Lines for rapid scanning, enabling fast data capture and significantly reducing scanning time.
FreeScan UE Nova offers the flexible field of view depending on three selectable working range, adapt to different on-site operation conditions.
- Near Mode (300 ~ 800 mm): For detailed work in tight spaces, allowing to capture intricate precise details.
- Standard Mode (600 ~ 1500 mm): For general-purpose scanning tasks, offering a balanced range for both speed and details performance.
- Far Mode (1200 ~2600 mm): For very large-scale objects, enabling you to cover expansive areas quickly.
- Integrated Wireless Modules: ensure real-time data transmission with high frame rates and stability.
- Swappable Batteries: features detachable and hot-swappable batteries for continuous scanning during long-time projects or in remote locations.
- Built-In Computing Modules: enable rapid and efficient processing. These onboard capabilities ensure fast, reliable results on the go.
Utilizing SHINING 3D’s patented video-based photogrammetry (VPG) without coded markers, it integrates with a calibration rod for real-time marker verification, delivering volumetric accuracy of 0.072 + 0.012 mm/m for more efficient and reliable data acquisition.
Elevate your capabilities and tackle even the most complex work environments with FreeScan Trak Nova. Click below to discover more!
- Dynamic tracking
| Parameter name | Value |
|---|---|
|
Scan Mode
|
“High-Speed (50 Laser) | Detail |
|
Light Source
|
Blue Laser |
|
Scan Accuracy
|
0.072 mm |
|
Volumetric Accuracy
|
0.072 + 0.012 mm/m (photogrammetry) |
|
Scan Speed
|
N/A |
|
Resolution
|
N/A |
|
Maximum FOV
|
2600 x 2200 mm |
|
Depth of field
|
2600 mm |
|
Texture Scan
|
No |
|
Photogrammetry
|
Built-in Video Photogrammetry (VPG) |
|
Integrated CPU
|
Supports integration with TE Nova scanning head (FreeScan Trak Nova), enabling flexible recognition and marker-free scanning. |
|
Wireless scanning
|
Supports wireless scanning and data transmission. |
|
Output Formats
|
OBJ, STL, ASC, PLY, P3, 3MF |
|
Accuracy Certifications
|
VDI/VDE 2634 – 3 (ISO 17025 Certified Lab) |
|
Certifications
|
CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX, TELEC” |
