SKU MI.MD.01

Modix BIG-60

188.000.000 300.500.000

188.000.000 300.500.000
Compare
Seamless Large Prints

Stronger parts with less post-processing.

Multi-Material & IDEX

Print complex geometries with ease

Fast 3D Printing

Modix’s Generation 4 printers are capable of printing significantly much faster than before. Travel speed of up to 350 mm/s, and printing of up to 250 mm/s.

This higher print speed has been made possible thanks to strong NEMA 23 motors on the X axis instead of NEMA-17 motors. In addition, the weight has been reduced on the Y axis as the weight of one motor is split now into two independent ones, using the IDEX setup.

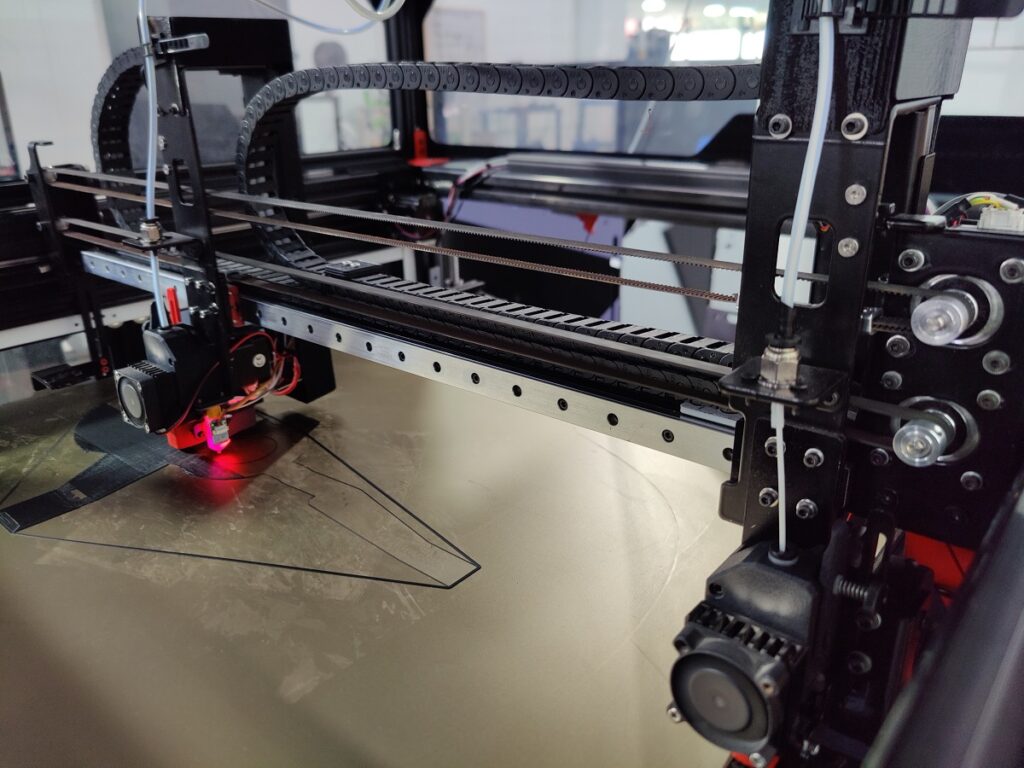

IDEX dual printing add-on

“IDEX” stands for independent dual extruder, where each extruder is independently controlled. Meaning, while the active extruder is printing, the second extruder is “parked” outside the printing area. Therefore, printing advanced models with
internal geometries is made possible more easily, by using water-soluble filament.

Soluble Support Filament

With IDEX Technology printing advanced models with internal geometries is made possible by using water-soluble filament.

View more
Parameter name Value
Technology

FDM

Build Volume (XYZ)

600 x 600 x 600 mm

Accuracy

Z: ±0.2 mm + 1 layer
XY:
≤ 300mm: ±0.2 mm
> 300mm: ±0.2% *L

Layer Thickness

0.1 ~ 1.2 mm

Light Source

/

Nozzle Size

0.4 ~ 1.6 mm

Printing Speed (Maximum)

250 mm/s (depending on nozzle size and layer thickness)

Input Format

.stl, .obj, .3mf, .stp

Material Catridge

/

Build Platform

removable (Magnetic Bed) (Option)

Material

PLA, ABS, PETG, PC, PA, TPU, TPE, PVA, HIPS, ESD

Printing Software

CF/GF reinforced filaments
