OptimScan 5M plus
OptimScan 5M plus
SKU HH.MS.SN.33

OptimScan 5M plus

Contact

OptimScan 5M Plus - Máy quét 3D đo lường cố định với ba phạm vi quét, tương thích với đa dạng các ứng dụng đo kiểm yêu cầu độ chính xác lên đến 0.005mm, phù hợp cho các phòng QC kiểm soát chất lượng sản phẩm nhanh chóng và tự động hóa.

Compare
OptimScan 5M Plus

High-Precision 3D Inspection System

  • High accuracy up to 0.005mm
  • High resolution cameras
  • Multiple scan ranges
High Accuracy

Single shot accuracy can reach to 0.005mm, and it provides the function of environmental vibration detection and effectively ensures high-quality data and precision.

High Resolution

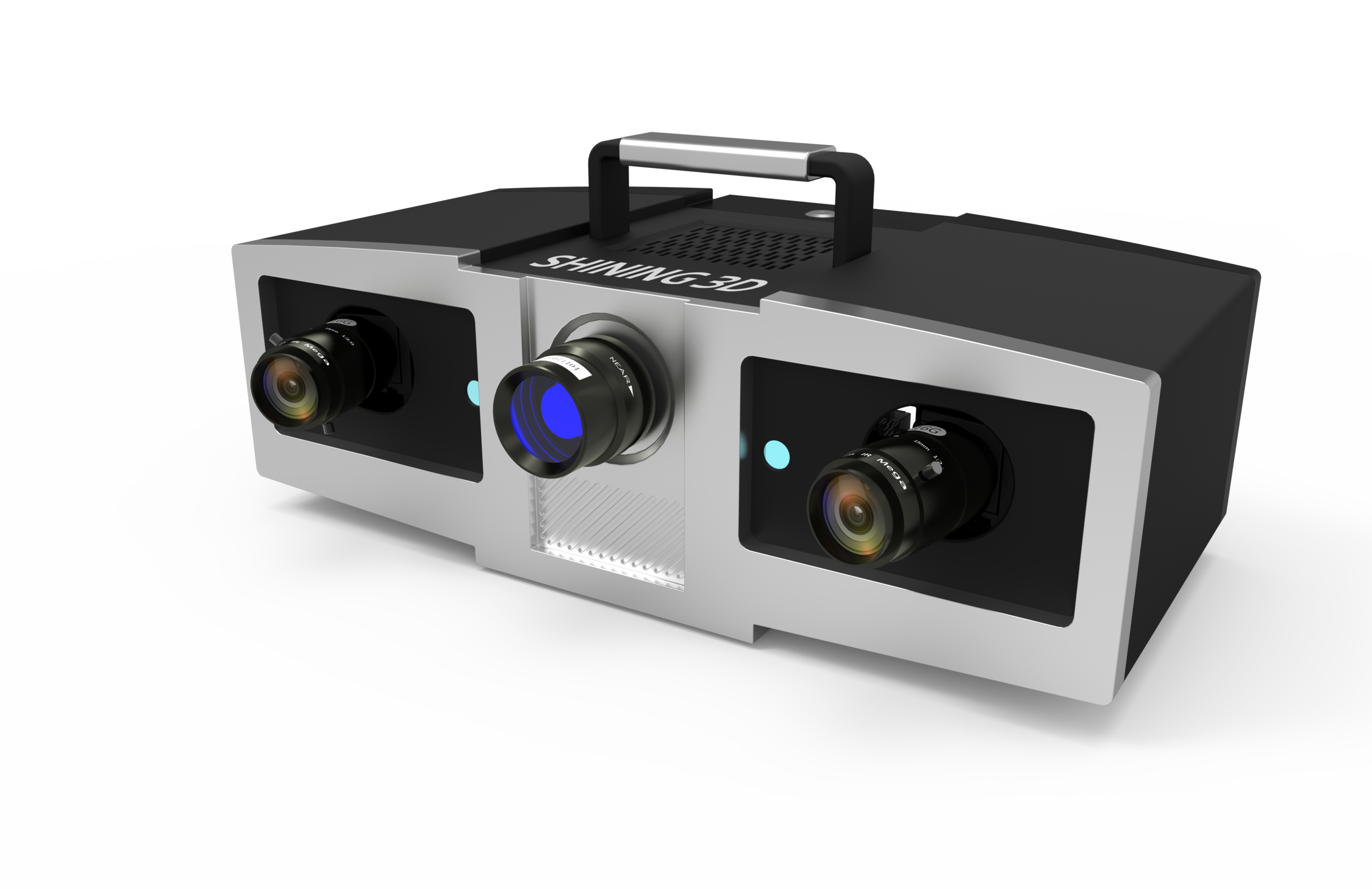

Three sets of 5-megapixel high-resolution cameras and 1080P projection are used to obtain high-precision features.

Multiple Scan Range

The system achieves different scanning ranges by switching between various lenses, ensuring finer scanning performance.

HDR Function

The HDR function helps scan high-contrast objects, such as black and white surfaces, to obtain complete data.

One-click Integration Module Function

The system integrates the “one-click” automatic markers alignment module and the GREC global deviation control module, which effectively reduces alignment errors and get high-quality data with high precision.

View more
Parameter name Value
Scan Mode

“Fixed Scan | Semi-automated | Automated

Light Source

Blue LED

Scan Accuracy

Large range: 0.015 mm
Mid range: 0.01 mm
Small range: 0.005 mm

Volumetric Accuracy

/

Scan Speed

/

Resolution

0.004 ~ 0.16 mm

Maximum FOV

Large range: 430 x 300 mm
Mid range: 200 x 150 mm
Small range: 100 x 75 mm

Depth of field

560 mm

Texture Scan

No

Photogrammetry

No

Integrated CPU

Automated Robot Arm (option)

Wireless scanning

No

Output Formats

OBJ, STL, ASC

Accuracy Certifications

VDl/VDE 2634 Part 3 (ISO 17025 certificated lab)

Certifications

CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX”
