Figure 4 135
The Figure 4 135 combines high powered, accurate light projection printing with image processing IP for extremely precise, repeatable parts. Industrial features like auto-door and auto-filling from high volume resin cartridges to enable more efficient workflows and reduce hands-on time from operators. Take your production workflow to the next level with new traceability and fleet management features designed to give you total control over processes.
Fastest 3D print technology; projectors cure layers fast if building a single, small part or a full platform of many parts.
High-powered projector and image processing IP deliver out-of-box accuracy and repeatability from part-to-part and printer-to-printer.
- Diverse set of Specialty, Durable, Tough, Rigid materials
- Widest selection of flame retardant (FR) materials
- High temperature and elastomeric materials
The Figure 4 135 can deliver batch-level, true production-grade outcomes required to complement traditional manufacturing operations.
With extremely high out-of-box precision, the Figure 4 135 solution is ideal for manufacturing industries where a process capability index (CpK) of at least 1.33 or above* is required for critical processes. The Figure 4 135 significantly exceeds these standards making it highly reliable for precision applications.
Whether you’re building small quantities of parts for design iteration or populating a platform with large quantities of small components, the performance and output remains consistent and repeatable across multiple printers.
Figure 4 135 produces exceptional part quality and accuracy, a direct result of our trade secret pixel blending methods combined with precision projectors and innovative hardware configuration.
In order to guarantee best-in-class part quality, all our materials, print processes, image processing software, and printer hardware, are developed from +15yrs of 3D Systems’ print process experience with pixels, ensuring seamless integration.

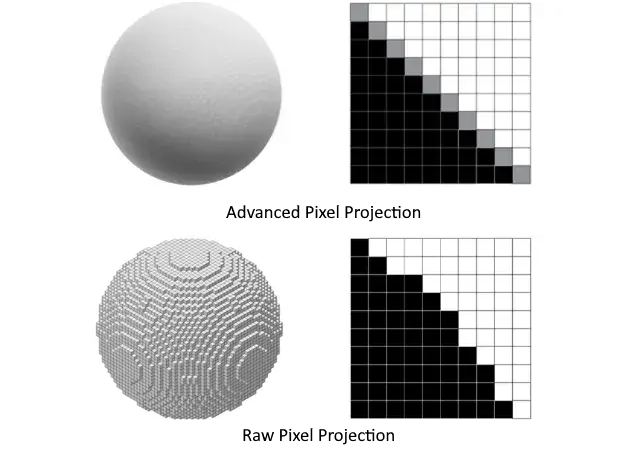

3D Systems’ image processing software automatically adjusts the pixel edges with gray scaling techniques. This results in high-quality production-grade plastic parts with best-in-class surface quality.
3D Sprint is exclusive software from 3D Systems for preparing and optimizing CAD and polygon data and managing the 3D printing process.
- Use a single software application from CAD
- Increase efficiency with optimized data management
- Streamline time to print and finished parts with a single, easy to use interface
- Improve productivity and reduce downtime with printer management and monitoring tools
| Parameter name | Value |
|---|---|
|
Technology
|
DLP (non-contact membrane) |
|
Build Volume (XYZ)
|
135 x 76 x 165 mm |
|
Accuracy
|
First 25mm ±50 μm/mm Additional ±2 μm/mm above 25mm |
|
Layer Thickness
|
20, 30 and 50 µm |
|
Light Source
|
405 nm (UV Wavelength) |
|
Nozzle Size
|
/ |
|
Printing Speed (Maximum)
|
up to 70 mm/hr |
|
Input Format
|
STL, CTL, OBJ, PLY, ZPR, ZBD, AMF, WRL, 3DS, FBX, IGES, IGS, STEP, STP and X_T |
|
Material Catridge
|
Auto-filling catridge |
|
Build Platform
|
Stainless Steel |
|
Material
|
Compatible with industry’s only AM resin featuring RTI Electrical rating at 150C at 0.4mm, 0.75 mm and 3 mm
|
|
Printing Software
|
3D Sprint® Software, 3D Connect™ Software Capable |
