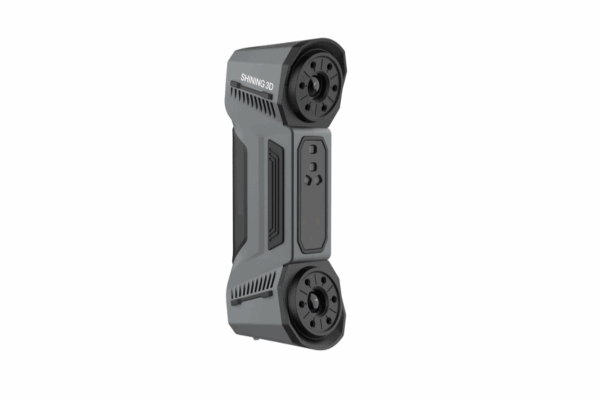

Freescan Combo
ContactMultifunctional Metrology Laser 3D Scanner
- Blue laser & Infrared light
- Accuracy of 0.02mm
- Powerful and Ergonomic
- Reddot Winner 2024
Packs dual light sources in an ultra-compact shell, measuring just 193 x 63 x 53 mm. It’s equipped with both blue laser and infrared VCSEL technology and weighs only 620g.
- Metrology-Grade Accuracy: Accuracy 0.02mm, delivers consistent scanning results with high precision.
- Versatile Dual Light Scanning: An innovative combination of blue laser and infrared light sources meets the needs of diverse industrial 3D scanning scenarios.
- Multiple Scanning Modes: Up to 25 cross laser lines to scan large objects quickly, 7 parallel laser lines to scan fine details, and a single laser line for deep hole and pocket area scanning.
- Lightweight and Compact: The lightweight and ergonomic design of the Combo Series allows for use in a variety of narrow and complex environments.
An innovative combination of blue laser and infrared light ensures accurate results in various scenarios, improving both efficiency and quality.
- Multiple-line mode with 26 or 50 laser lines for overall scans
- Fine scanning mode with 7 parallel laser lines to acquire intricate details
- Deep hole scanning mode with 1 single laser line
- Infrared light mode for quick scans without markers
The FreeScan Combo Series’ laser scanning modes can achieve industrial-grade accuracy of 0.02 mm*, making it ideal for metrology applications.
*Based on VDI/VDE 2634, sphere-spacing error is assessed with traceable length artifacts and markers by measuring these at different locations and orientations within the working volume, in the accuracy lab certified with ISO/IEC 17025:2017 under environmental conditions: temperature 20 ± 0.5°C; humidity 40 ~ 60% RH.
It’s multiple line mode projects up to 50 laser lines (FreeScan Combo + version) and scan at speeds of up to 3,600,000 points/sec.
The FreeScan Combo Series boasts an ergonomic, compact, and lightweight design that makes 3D scanning convenient and easy.
The optimized camera angle makes it more suitable for working in narrow and complex environments, allowing for fast data capture in seams.
For feature-rich workpieces, the infrared light scanning mode is ideal. It captures parts quickly and efficiently without the need for markers.
| Parameter name | Value |
|---|---|
|
Scan Mode
|
26 Laser Lines | 7 Parallel Laser Lines | Single Laser |
|
Light Source
|
Blue Laser | IR |
|
Scan Accuracy
|
0.02 mm |
|
Volumetric Accuracy
|
0.02 ± 0.033 mm/m |
|
Scan Speed
|
1,860,000 points/s |
|
Resolution
|
0.05 ~ 10 mm |
|
Maximum FOV
|
600 x 600 mm |
|
Depth of field
|
300 mm |
|
Texture Scan
|
No |
|
Photogrammetry
|
No |
|
Integrated CPU
|
N/A |
|
Wireless scanning
|
No |
|
Output Formats
|
OBJ, STL, ASC, PLY, P3, 3MF |
|
Accuracy Certifications
|
VDI/VDE 2634 – 3 (ISO 17025 Certified Lab) |
|
Certifications
|
CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50 |
