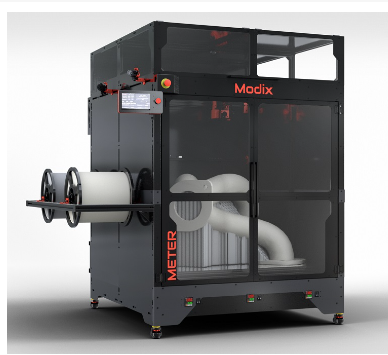

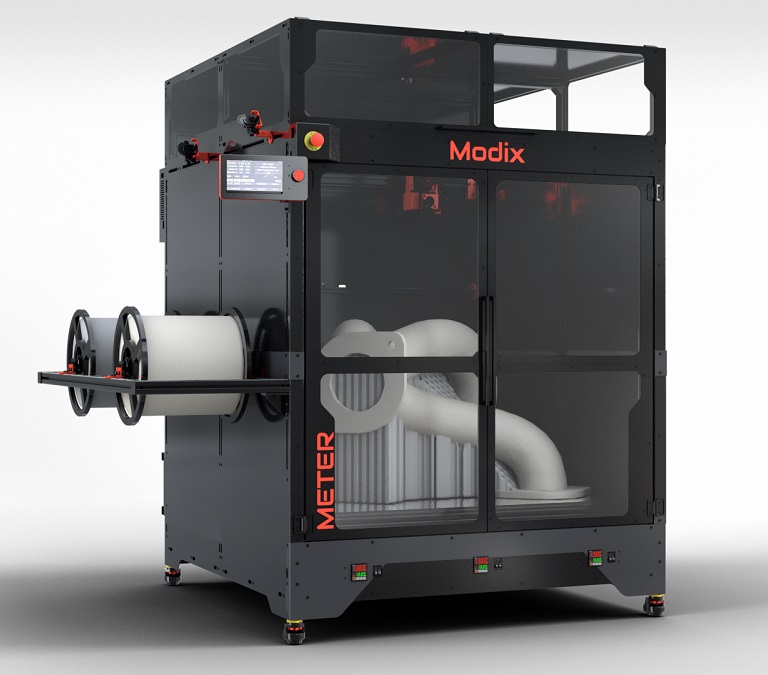

Modix BIG-Meter
ContactKhổ in: 1000 x 1000 x 1000 mm (XYZ)
BIG-Meter cung cấp một bàn in lớn với thể tích in 1000 mm³ (1000 x 1000 x 1000 mm), tạo ra một thể tích in lớn đáng kể.
BIG-Meter phù hợp cho việc sản xuất các chi tiết lớn hoặc nhiều chi tiết nhỏ trong một lần in.
The new design maintains the previous design benefits of compact design that preserves the generous Z-axis travel and is compatible with the vast offering of E3D Volcano nozzles coming in numerous sizes and materials.

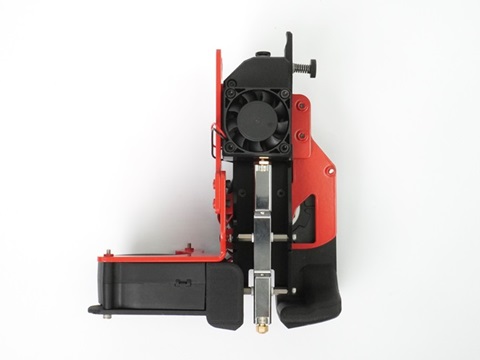

Large-scale 3D printing often carries the risk of the print head scratching or colliding with thick-layer models, potentially bending or breaking the heat break. The new print head features a rigidly mounted heat block, enhancing reliability and significantly reducing these risks.
| Parameter name | Value |
|---|---|
|
Technology
|
FDM |
|
Build Volume (XYZ)
|
1000 x 1000 x 1000 mm |
|
Accuracy
|
Z: ±0.2 mm + 1 layer |
|
Layer Thickness
|
0.1 ~ 1.2 mm |
|
Light Source
|
/ |
|
Nozzle Size
|
0.4 ~ 1.6 mm |
|
Printing Speed (Maximum)
|
253 mm/s (depending on nozzle size and layer thickness) |
|
Input Format
|
.stl, .obj, .3mf, .stp |
|
Material Catridge
|
/ |
|
Build Platform
|
removable (Magnetic Bed) (Option) |
|
Material
|
PLA, ABS, PETG, PC, PA, TPU, TPE, PVA, HIPS, ESD |
|
Printing Software
|
CF/GF reinforced filaments |
