OptimScan Q12
Contact
OptimScan Q12, equipped with 4 x 12.3 megapixel cameras, accurately captures geometrically detailed features on an object’s surface.
Combined with powerful hardware modules and advanced 3D reconstruction algorithms, it delivers an impressive accuracy of up to 0.005 mm, ensuring stable repeatability.
The OptimScan Q12 features two scan ranges that can be switched with a single click, eliminating manual adjustment of aperture and focal length.
- Large range: 430 × 300 mm
- Small range: 160 ×110 mm
Scanned data from different ranges can be seamlessly fused in the software, ensuring both efficiency and detail.
The monocular-stereo fusion function can effectively increase data coverage and improve the integrity of the scanned data, such as the common turning corners and joints of industrial parts.
Powered by a built-in dual-chip computing module, OptimScan Q12 delivers fast image acquisition and data processing. Each shot less than 1 second, capturing an impressive 12 million points with exceptional precision.
To further streamline the workflow, Q12 offers multiple exposure modes—including intelligent automatic exposure—dramatically reducing scanning time while ensuring optimal results across diverse surface conditions.

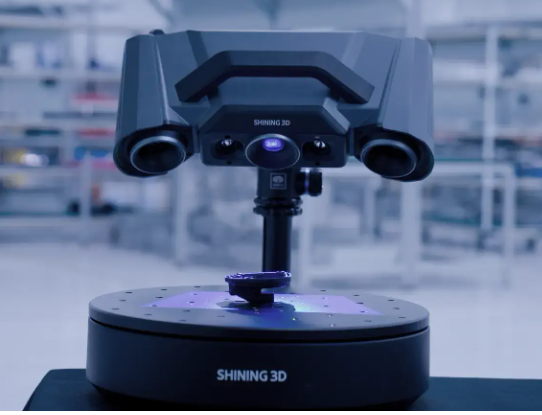

OptimScan Q12 is compact and easy to carry, offering flexible manual scanning. For semi-automated operation, it pairs with a fixed tripod and an automatic turntable with up to 20 kg load, providing increased efficiency and consistency in scanning. In fully automated mode, it integrates with a robot for precise, repetitive inspection tasks.
OptimScan Q12 can seamlessly integrates with intelligent 3D inspection system, enabling fully automated workflow from scanning to report generation.
We don’t just provide devices – we deliver customized solutions, global support, and a commitment to your success. From intuitive tools to calibrated accuracy, we’re here to empower your work.
| Parameter name | Value |
|---|---|
|
Scan Mode
|
“Fixed Scan | Semi-automated | Automated |
|
Light Source
|
Blue LED |
|
Scan Accuracy
|
Large range: 0.015 mm |
|
Volumetric Accuracy
|
/ |
|
Scan Speed
|
12,000,000 points/s |
|
Resolution
|
0.04 ~ 0.1 mm |
|
Maximum FOV
|
Large range: 430 x 300 mm |
|
Depth of field
|
Large range: 590 mm |
|
Texture Scan
|
No |
|
Photogrammetry
|
No |
|
Integrated CPU
|
Automated Robot Arm (option) |
|
Wireless scanning
|
No |
|
Output Formats
|
OBJ, STL, ASC |
|
Accuracy Certifications
|
VDl/VDE 2634 Part2 (certificated in ISO 17025 certificated accuracy lab) |
|
Certifications
|
CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX” |
