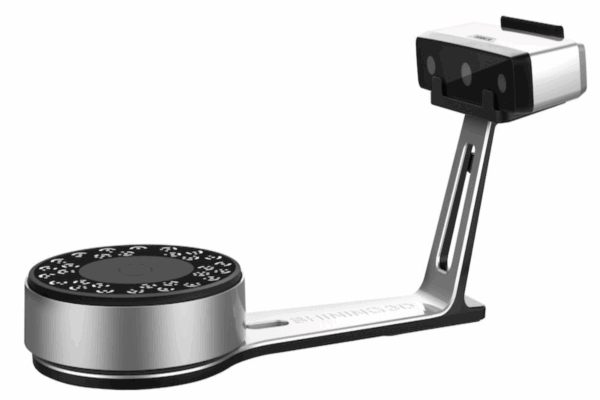

EinScan SP V2
ContactEinScan SP V2 is the ideal desktop 3D scanner for beginners, enabling you to effortlessly transform physical objects into 3D data right at your desk, packed with outstanding features:
Accuracy: Up to 0.05 mm
Single scan speed: Under 1 second
5 alignment modes: Enhancing overall user experience
Compatibility: Full MacOS support
EinScan SP V2 delivers a smooth, fast, and precise scanning experience for designers, engineers, and digital content creators alike.
CADian3D V7
- Easy Operation
- Good Accuracy
- Scan Range from Small to Large
- Color in 3D Scanning
- One-click scanning without rigid workflow
- Automatic calibration without tedious preparations
- 1 second for a single scan
- 45 seconds for one turn
- Precise calibration in a simple way, achieving high accuracy of up to 0.05mm
- Powerful software algorithms and a point distance of up to 0.17mm, ensuring the scanning results have high-definition details
Depending on the size of the object, scanning can be carried out using a turntable for automatic scanning or a tripod for manual scanning.
Easy reproduction of physical objects with colored textures, enhanced the utility and realism of the captured 3D models.
Software EXScan S has the functions of hole filling, mesh smoothing and sharpening, and can also readjust the data coordinates in the post-processing process to provide perfect 3D data for subsequent applications.
| Parameter name | Value |
|---|---|
|
Scan Mode
|
Rapid Scan | HD Scan | Fixed Scan |
|
Light Source
|
White LED |
|
Scan Accuracy
|
0.04 mm |
|
Volumetric Accuracy
|
0.3 mm/m |
|
Scan Speed
|
3,000,000 points/s |
|
Resolution
|
0.2 ~ 2 mm |
|
Maximum FOV
|
250 x 200 mm |
|
Depth of field
|
400 mm |
|
Texture Scan
|
Yes (Color Pack) |
|
Photogrammetry
|
No |
|
Integrated CPU
|
Industrial Pack, Color Pack |
|
Wireless scanning
|
No |
|
Output Formats
|
OBJ, STL, ASC, PLY, P3, 3MF |
|
Certifications
|
VDI/VDE 2634 – 2 |
|
Accuracy Certifications
|
CE, FCC, ROHS, WEEE, KC |
