ProJet MJP 2500 Plus
The ProJet® MJP 2500 Series embodies the latest in 3D Systems MultiJet Printing (MJP) technology, engineered to combine professional-grade 3D printing capabilities with an affordable price, compact footprint and easy part processing.
The wide range of VisiJet materials for the ProJet MJP 2500 Series includes engineering-grade, rigid, elastomeric, high temperature resistant and biocompatible materials, enabling a broad set of applications.

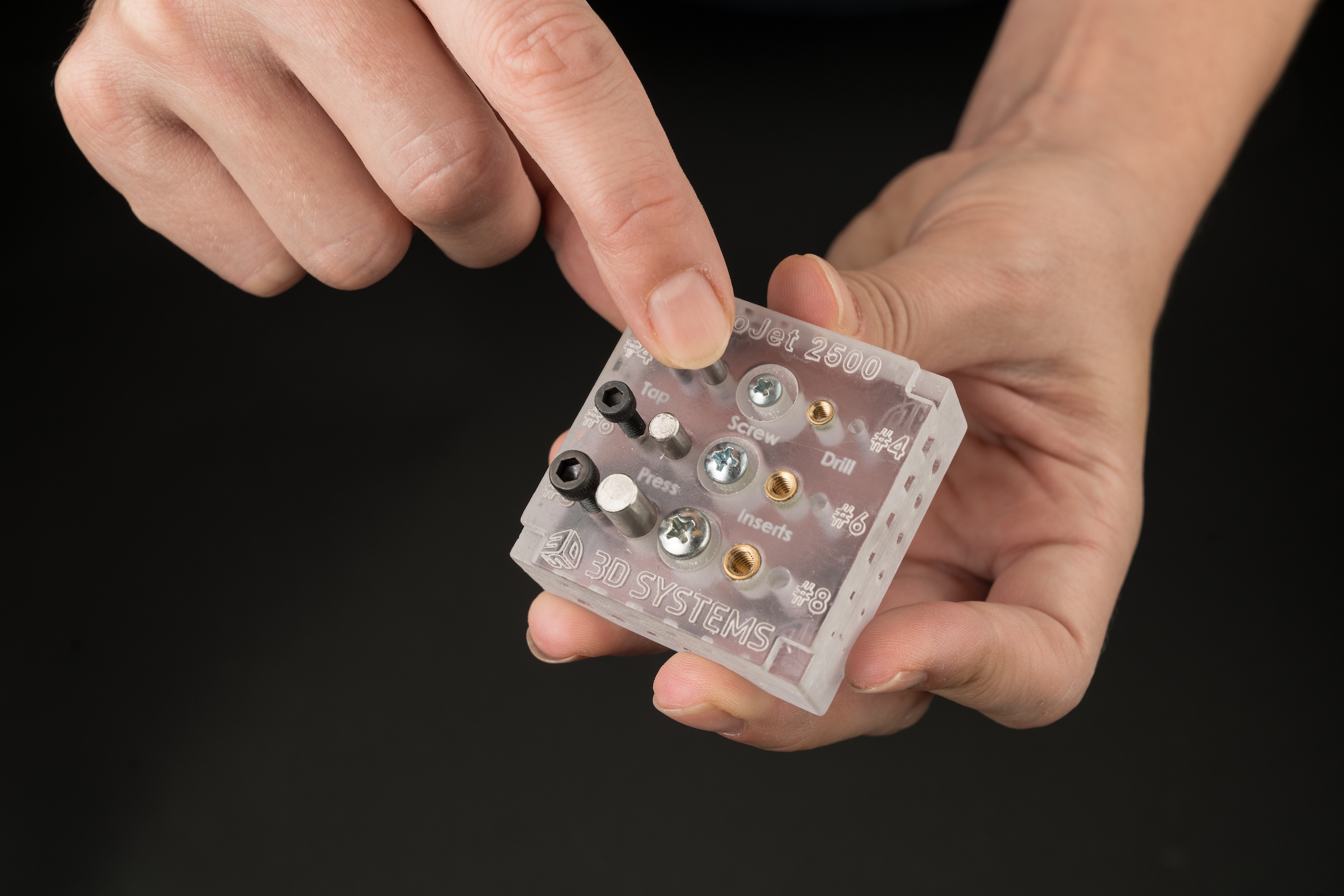

Print precision rigid and elastomeric parts with true-to-CAD accuracy, superior surface finish and high-quality edge fidelity for true functional testing. Capable of printing in Ultra High Definition mode, the ProJet® MJP 2500 Plus makes it possible to print even smaller features, down to 300 microns or finer.
The ProJet MJP 2500 and 2500 Plus are compatible with a wide and versatile selection of VisiJet® materials, both offering engineering and rigid plastics.
The ProJet MJP 2500 Plus offers additional capabilities, with a broader range of rigid materials available in clear to a number of opaque colors, as well as materials with properties that mimic engineering plastics, elastomers and with high-temperature resistance. Applications include concept modeling, form and fit testing, functional prototyping, fluid flow analysis, rapid tooling, jigs and fixtures and medical applications requiring USP Class VI and/or ISO 10993 certification for biocompatibility.
Step up from desktop 3D printing to 24/7 usability and get more parts sooner to design better products faster. The ProJet MJP 2500 printers’ industrial print head and optimized print parameters deliver up to 3 times faster print speeds than similar class printers for better efficiency and higher productivity. 3D Connect™ Service provides a secure cloud-based connection to 3D Systems service teams for proactive and preventative support to enable better service, improve uptime and deliver production assurance for your system.
Driven by the powerful 3D Sprint® print client software, ProJet MJP 2500 printers deliver high fidelity functional parts with speed, ease and low operational costs. The new MJP EasyClean System is an incredibly simple and hands-free way to remove supports from MJP parts in under 30 minutes without manual labor. Faster and cleaner batch post-processing simplifies the workflow and allows for same-day design verification, with your most intricate details preserved.
| Parameter name | Value |
|---|---|
|
Technology
|
MultiJet Printing (MJP) |
|
Build Volume (XYZ)
|
294 × 211 × 144 mm (11.6 × 8.3 × 5.6 in) |
|
Accuracy
|
± 0.001-0.002 inch per inch (0.025-0.05 mm per 25.4 mm) of part dimension (on platform). |
|
Layer Thickness
|
HD Mode: 800 x 900 x 790 DPI; 32 µm layers |
|
Light Source
|
/ |
|
Nozzle Size
|
/ |
|
Printing Speed (Maximum)
|
/ |
|
Input Format
|
STL, CTL, OBJ, PLY, ZPR, ZBD, AMF, WRL, 3DS, FBX, IGES, IGS, STEP, STP, MJPDDD |
|
Material Catridge
|
Auto Switching Bottle Capacity: 2 of each (build/support) |
|
Build Platform
|
/ |
|
Material
|
|
|
Printing Software
|
3D Sprint®, 3D Connect™ Capable |
